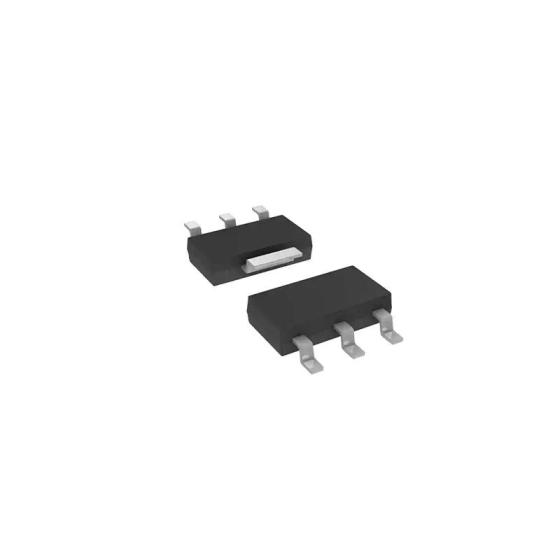

Low-dropout Regulators 1A Bipolar Linear Regulator SSP1117 – LDO Voltage Regulator Manufacturer

SSP1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. SSP1117 features a very low standby current 2mA compared to 5mA of competitor.Other than a fixed version, Vout=1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5V, SSP1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. SSP1117 offers thermal shut down function, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%.SSP1117 is available in SOT-223, TO-252 power package.

Features

• Maximum output current is 1.0A
• Range of operation input voltage: Max 20V
• Line regulation: 0.03%/V (typ.)
• Standby current: 2mA (typ.)
• Load regulation: 0.2%/A (typ.)
• SOT-223, TO-252 package

Application

• Power Management for Computer Mother
• Board, Graphic Card
• LCD Monitor and LCD TV
• DVD Decode Board
• ADSL  Modem
• Post Regulators For Switching Supplies
