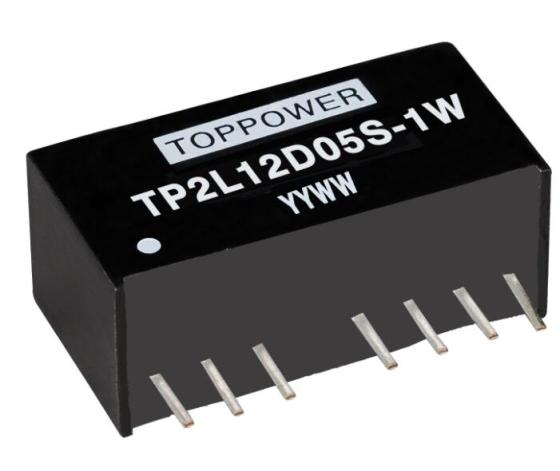

DC-DC Converter / TP2L-3W / Regulated, SC Protection Power Component – Isolated Power Module Supplier
TOPPOWER can produce:
0.1W-40W DC-DC converters,3W-30W AC-DC converters,
25W-1200W Enclosed /Open frame type AC-DC Switching Power supply,
15-480W AC-DC DIN RAIL Power Supply.
DC-DC Converter ,DC-DC Converters DC/DC Converters/ TP2H / 3W / Regulated, SC Protection
| Basic Information: | |||||||
| 1 | Model No.: | TP2L-3W Series | |||||
| 2 | Trademark: | TOPPOWER | |||||
| 3 | Standard: | RoHS, UL, CE, FCC | |||||
| 4 | Origin: | Guangzhou, China | |||||
| 5 | Production Capacity: | 100,000pcs | |||||
| Trade Information: | |||||||
| 1 | Min. order: | N/A | |||||
| 2 | Terms of delivery: | FOB | |||||
| 3 | Payment Terms: | T/T, Western Union, Paypal | |||||
| 4 | Terms of shipment: | DHL / UPS / EMS / TNT | |||||
| 5 | Delivery time: | 7-12 working days | |||||
| 6 | Price: | Negotiable | |||||
| Functional Specification: | |||||||
| 1 | Model NO.: | TP2L-3W Series | |||||
| 2 | Power(Watts): | 3W | |||||
| 3 | Isolation Voltage: | 1.5KVDC | |||||
| 4 | Package: | SIP | |||||
| 5 | Input(VDC): | 5V, 12V,24V, 48V | |||||
| 6 | Output(VDC): | 3.3V,5V,9V,12V,15V,±12V, ±15V | |||||
| 7 | Temperature: | -40oC to 85oC | |||||
| 8 | Dimensions (mm): | SIP(L/W/H): 25.95*12.45*9.25 | |||||
| 9 | PIN Connection: | 1(-Vin),2(+Vin),3(Ctrl),6(+Vout),7(OV),8(N/A),9(-Vout) | |||||
| Features: | |||||||
| 1 | 1.5KVDC isolation | ||||||
| 2 | Isolated Single Output | ||||||
| 3 | Continuous short circuit protection | ||||||
| 4 | 2:1 wide range voltage input | ||||||
| 5 | Power density 1.00W/cm3 | ||||||
| 6 | Remote on/off | ||||||
| 7 | 0.5% Load regulation | ||||||
| 8 | Efficiency up to 83% | ||||||
| 9 | RoHS Compliant | ||||||
| 10 | Wide operating temperature range | ||||||
| Selection Guide: | |||||||
| No. | Part Number | Input Voltage (V) Rated | Input Voltage (V) Range | Output Voltage (V) | Output Current (mA) Min. | Output Current (mA) Max. | Efficiency (%) |
| 1 | TP2L24D12S-3W | 24 (2:1) | 18-36 | ±12 | ±31 | 124 | 81 |
| 2 | TP2L24D15S-3W | 24 (2:1) | 18-36 | ±15 | ±26 | 99 | 81 |
| 3 | TP2L48D12S-3W | 48 (2:1) | 36-72 | ±12 | ±31 | 124 | 80 |
| 4 | TP2L48D15S-3W | 48 (2:1) | 36-72 | ±15 | ±26 | 99 | 80 |
you could send us the specs or model No. ;
and we will advise the alternative part for you.
TOPPOWER is a leading manufacturer of power converters :
0.1W-40W DCDC converter & 3W-30W ACDC converters.
