Car Wash Machine

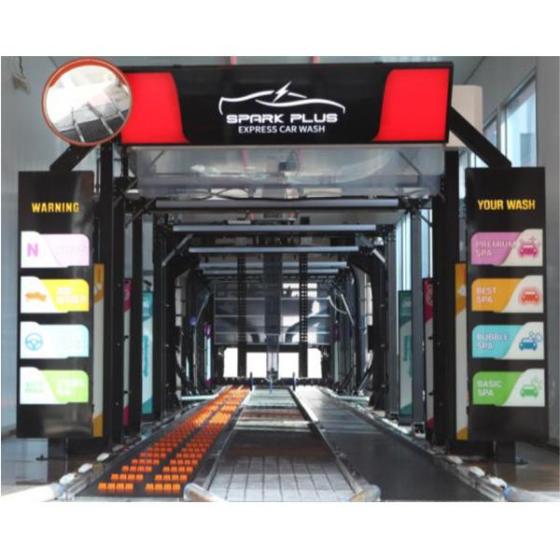

Touchless - Spark plus(Premium)

Tunnel type(30m) touchless car washing system that can generate profits through quick car washing.

Features

Car washing capacity : 70Units / Hour
Touchless(Brushless) system with steam & hot water
ESS(Electrical Separation System ) technology is applied (Patented)
Using vehicle shape recognition & distance maintenance cleaning system (Patented)
High durability and application of various marketing detergents

Specification

Equipment dimensions : 3,800mm W * 3,900mm H * 29,000mm L
Bay required dimensions : 5,000mm W * 4,500mm H * 31,500mm L
Allowed vehicle dimensions : 2,150mm W * 2,200mm H
Water usage : 347L / 1 unit
Gas usage : 100Nm3/H
Power consumption : 150kWH (380V - 3 phase, 22V single phase)
Chemical car Cleanser : PHC chemical wax, Ceramic wax, Dry agent(wax), Triple combination foam, CTA (Chemical Tire wheel Applicators)


Bubblizer	TS(TOP high pressure)
A bubble that covers the entire vehicle effectively removes stubborn dirt from the vehicle.	High-pressure close-up washing of the front and rear is possible by maintaining a certain distance depending on the shape of the vehicle.

TM(Side high pressure)	Strong drying
High-pressure washing is possible by maintaining a constant distance regardless of the vehicle width.	The application of a waterproof shutter provides improved drying efficiency.
