1000W AGV High Torque Motors with Absolute Value Encoder No Brake
Product Description:

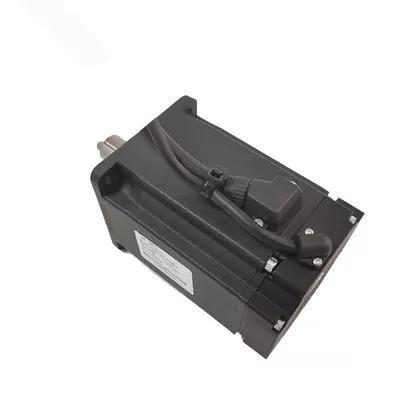

AGV Drive Motor is a high torque motor with a rated power of 1000W and a rated torque of 3.2Nm. It is designed with a flange size of 80*80mm and comes with no brake, and an absolute value encoder. It is ideal for Automated Guided Vehicle (AGV) applications requiring high torque motors, geared motors and robust drive systems for reliable performance.
This motor is designed for applications requiring high performance, high power density, and high torque capabilities. It features an integrated encoder with absolute value feedback for precise positioning control, as well as an optimized gearbox for smooth operation. It is also equipped with a wide range of safety and protection features to ensure safe and reliable operation.
Features:
1.Compact size and light weight - By operating at lower voltages, motors can be made smaller and lighter. This allows them to adapt to small Spaces.
2.Precise position and speed control - The encoder for the motor is HKT's custom-made product for the AGV industry, enabling precise position and speed control.
3.Quiet operation - Noise reduction compared to high voltage industrial motors.
Technical Parameters:
| Property | Value |
|---|---|
| Rated Torque | 3.2Nm |
| Encoder | Absolute Value |
| Rated Current | 25A |
| Rated Speed | 3000rpm |
| Brake | No Brake |
| Supply Voltage | DC 48V |
| Flange Size | 80*80mm |
| Number of Pole Pairs | 5 Poles |
| Rated Power | 1000W |
Applications:
This motor is widely used in the field of AGV, such as the robot automatic guided vehicle. It is also suitable for many applications, such as automated assembly line, automatic packaging and warehousing. Its powerful torque, high speed and low noise make it the best choice for industrial automation.
