Hot

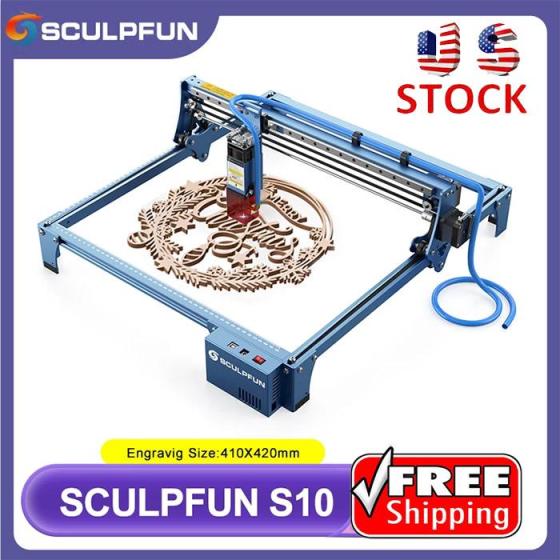

SCULPFUN S10 Laser Engraver with High-Speed Air Assist Nozzle & 10W Optical Power
Faster, Stronger, Cleaner
First, the cutting efficiency is greatly improved, cut faster; Second, the cutting penetration is stronger, and many high-density woods can be cut; Third, the cutting surface is cleaner, the powerful airflow blows away the residue, so that there is no stain on the surface of the cutting object. Combining advanced high-speed air assist and 10W high density laser,Sculpfun S10 shows comparable to industrial-grade wood cutting performance
More Advanced and Upgradable 32-bit Motherboard
The Sculpfun S10 laser engraver motherboard uses 32-bit chips, with faster computing speed, and it still reserves Z-axis and limit switch functions to facilitate people to upgrade the engraving machine.
Strong Large Parts in One Single Piece
Building large parts up 1500 mm in length in one piece increases part strength, as attachment points always present a weakness in a part. Building the part in one piece also frees additional resources that would be occupied with the assembly of the different segments. Use this feature to build prototype dashboards, middle consoles or stable and light extra-large metal casting patterns. The broad spectrum of resins is developed for 3D Systems Stereolithography printers to generate the consistency and mechanical properties required for each customer application.
Related Information
Diode laser output power: 10W (note this is light energy not electrical energy) Inner diameter of air pipe: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, out diameter of nozzle:8mm) Laser wavelength :455±5nm Engraving accuracy: 0.01mm
Expandable Engraving Area
Sculpfun S10 keeps Y-axis expandable design like Sculpfun S9, the original engraving area is about 410x400mm, but you can buy S10 Y-axis extension kit to expand the engraving area to 410X940mm, which can help you get 230% of the engraving area at a very low price. This can help you better to deal with large-area engraving or cutting work.
A Great Laser Machine
Focusing method: fixed focus + sliding device Machine power consumption: about 36W (not related to engraving or cutting performance, just power consumption) Data transfer method: USB connection Power input: 100-240V AC, 50/60HZ Output: 12V 5A
Powerful High-speed Air Assist
When using the same air compressor, the S10 laser engraver spray airflow faster. For example, when using 30L/min, 0.03Mpa air compressor, the S10 nozzle will spray high-speed airflow up to 14.5m/s. This will greatly improve the cutting penetration and cutting efficiency.
Square Measuring Ruler
X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 400x400mm large-area engraving interval can meet your various engraving needs.
Stronger Cutting Penetration
Cuts More Material It can cleanly cut 10mm thick wood and 15mm thick dark acrylic in a single pass, cut 10mm walnut and 6mm MDF and other high density materials, easily carve ceramics and stainless steel, etc
Adjustable Laser Eye Shield
The Sculpfun S10 module is equipped with a detachable eye shield, which will not dazzle even without glasses. And if you don't need it, you can easily disassemble the eye shield
SCULPFUN S10 Parameter:
- Product Model : SCULPFUN S10
- Diode laser output power: 10W (note this is light energy not electrical energy)
- Inner diameter of air pipe: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, out diameter of nozzle:8mm)
- Laser wavelength :455±5nm
- Engraving accuracy: 0.01mm
- Engraving area size: 410*400mm
- Focusing method: fixed focus + sliding device
- Laser protection cover: Equipped with a detachable laser cover to protect the eyes. You can adjust it up and down, or remove the cover.
- Machine power consumption: about 36W (not related to engraving or cutting performance, just power consumption)
- Engraving material: all kinds of wood (including walnut, cherry and other high density wood), MDF,bamboo, cardboard, plastic, leather, PCB board, alumina, 304 stainless steel, ceramic, dark stone
- Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic, cardboard, bamboo, some plastic boards, leather,PCB boards
- Laser software: LaserGRBL, LightBurn, GrblController, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
- Data transfer method: USB connection
- Power input: 100-240V AC, 50/60HZ Output: 12V 5A
- Product weight: 3.42kg
- Packing weight: 5.13kg
- Packing size: 600*345*130mm
- Certification: CE FCC RoHS FDA ICE certification
