Medical Insulation Detector – Medical Safety Testing Equipment Supplier & Cost

MY001-A Handheld Medical Insulation Detector

★Function: Insulation layer damage detection for operating instruments with power supply;

★Voltage accuracy: Output voltage accuracy :±1%;

★Detection mode: handheld or bench type detection, detecting instruments for different specifications；（The unique adapter can be used to fix the probe tool to the detected facility）

★Voltage regulation: no gear type voltage regulation, 0~5000V adjustable, to meet the detection of peak voltage conditions of charged equipment;

★LCD screen: 3.5 inch LCD touch screen, 12-point viewing angle, easy for watching;

★Alarm mode: sound, light, shadow three alarm modes, leakage detection prompt flashing, automatic voice broadcast the results after the completion of detection;

★Battery :10000mAh large capacity battery, standby time ≥90 days;

★Automatic standby: the instrument will actively reduce the screen brightness after 2 minutes of stopping using; it will automatically enter the standby sleepy state after 10 minutes of stopping using, ensuring a long service life of the battery module.

★Output current: <0.1mA (the tail end of detection pen) to ensure the safety of the operator.

★Discharge protection: high voltage discharge for 2 seconds, stop the high voltage output automatically;

★On-resistance: On-resistance range :0-10000, on-resistance accuracy :±2%

★Charging time: 4-6 hours, overcharge protection, continuous working time ≥48 hours;

★Connecting end: multi-specification, can connect different diameter electrical port of the instrument;

★Operation setting: Pre-set 6 commonly used voltage measurement modes to meet the needs of conventional instrument testing;

Chinese/English voice broadcast, the volume is adjustable;

Flicker alarm for leakage detection;

Times of leakage counts;

Unique multi-functional connector;

★Certificate: Calibration certificate: Key parameters (output voltage, discharge current, insulation resistance) with the "Calibration Certificate" issued by the domestic authoritative testing institution；

★Printing function: Optional Bluetooth printing function, printing test results, leakage times and other information.

★Warranty: The equipment is guaranteed for 2 years. Maintenance once a year, lifetime maintenance service.

★Size: 225mm(L)X90mm(W)X40mm(H);

Equipment application scope:

1. Insulation performance testing of laparoscopic surgical forceps, separation forceps and other endoscopic instruments with power supply;

2. External insulation performance test for electrical hook, electric rod, electric coagulator, electric coagulation forceps and other electric surgical instruments ;

3. External insulation performance test of charged surgical instruments of unipolar electric coagulation forceps and two-stage electric coagulation forceps;

4. External insulation performance test and on-off performance test of single (double) pole electric coagulation connecting wires and surgical instrument leads with power supply for endoscopes, laparoscopes, single (double) pole electric knives and electric coagulation forceps;

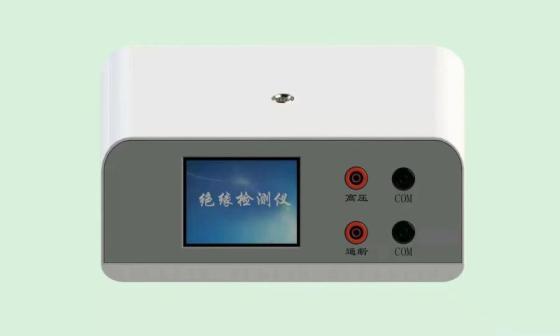

MY100-B Desktop Insulation Detector

Battery :20000mAh large capacity battery, standby time ≥90 days;

★Size:
208mm（L）×168mm（W）×85mm（H）
