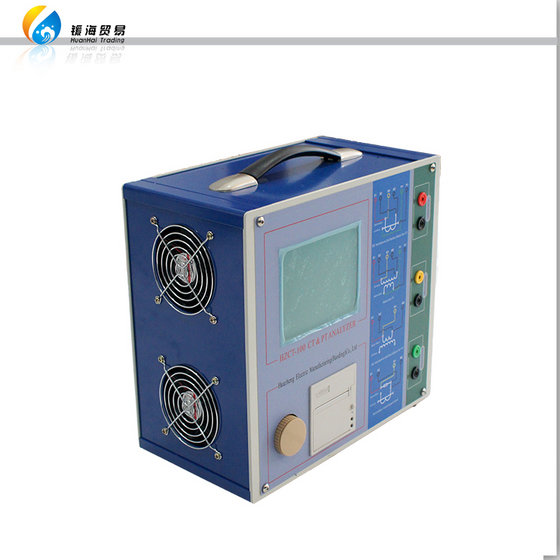

Variable Frequency Current Transformer Testing Equipment CT PT Analyzer

 Transformer Tester is new product created after widely adopt customers’ advices and deep theoretical study. It is based on the automatic FA Series Transformer Tester General which is produced by our company that is widely acclaimed and applied. The adoption of high-performance DSP and ARM, advanced manufacturing technology ensure a stable and reliable product performance, full-featured, high degree of automation, high efficiency, in the domestic leading level, they are the professional testing equipments for transformer check in power industry.

 Characteristics

     Full-featured, not only satisfy the test requirements of various CTs (include TP class), such as the excitation characteristics (i.e., volt-ampere characteristics), ratio, polarity, secondary winding resistance, secondary burden, ratio error and phase displacement, but can also be used for the tests of various PTs, including excitation characteristics of the electromagnetic unit, ratio, polarity, secondary winding resistance, ratio error and phase displacement.

     Automatically give CT, VT parameters, including knee point voltage / current, 10% error curve, the accuracy limit factor (ALF), instrument security factor (FS), the second time constant (Ts), remanence coefficient (Kr), saturated and unsaturated inductance etc.

     Test meet IEC60044 GB1208 (-1) GB16847 (IEC60044-6) became etc all kinds of transformer standards, and in accordance with the transformer types and levels of automatic choose which standard test

     Based on advanced principle of low-frequency test method that can meet the CT test on knee voltage up to 30KV.

     Friendly interface beautiful, all Chinese graphic interface

     The instrument can store 2000 groups of test data that won’t be lost when power off. After test ended, the data can be coped to PC by USB disk for analysis and being transformed into WORD report.

     Test is simple and convenient, one-click can complete tests of CT secondary resistance, excitation, ratio and olarity.

     Easy to carry, because the weight is less than 9Kg.

Technical Parameter

From the date of purchase within one year instrument,the warranty time is 12 months.This is the piriod of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.

Heibei Huanhai Import & Export Trading Co.,Ltd is a powerful company in electric area. We have a strong team including top sales, skilled engineers and we have our own manufacture with high quality.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam , Nicaragua,Thailand and so on.

Our main products are capacitors,insulation resistance tester,DC high voltage generator,testing transformer,insulating oil tester, like transformer oil dielectric tester (BDV tester), transformer loss tester, transformer oil acid tester, flash point tester and so on. The products Huanhai supplied as follows:

Transformer tester, High voltage generator, Relay test kit,Power quality analyzer, insulating oil tester,High voltage tester, Insulation tester, Earth resistance tester and so on.

1.What’s the test range of the turns ratio test set:

A:The test range is :0.9~10000.Auto.

2.What’s the warranty?

A:About 1 year.

3.What’s the language?

A:English version is ok.

4.How is the delivery?

A:We using the Sea,Air,and the Express.We have our own Cooperation forwarder,the delivery time can be guaranteed.

5.What’s the weight and the volume?The HS code?

 HS code:9030849000.

15kg ,405mm*250mm*260mm.
