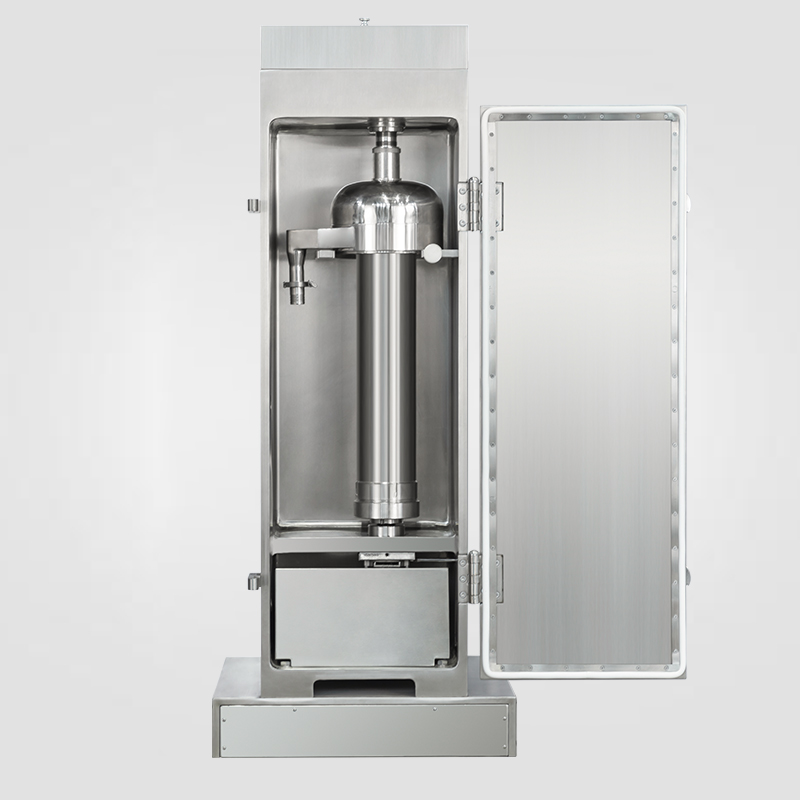

Depaul GQ160 High-Speed Tubular Centrifuge

Daibao Machinery Equipment Co., Ltd. is a leading Chinese high-tech enterprise specializing in the R&D and manufacturing of tubular centrifuges. In 2013, the company acquired the core tubular centrifuge technology from Shanghai Centrifugal Machinery Research Institute, laying a solid foundation for innovation. Building on decades of technical heritage, Daibao has continuously advanced its capabilities—developing high-speed and fully automatic tubular centrifuges that filled a critical industry gap and ended China’s 30-year reliance on manual discharge processes.

Today, Daibao serves over 600 clients worldwide, including more than 200 biopharmaceutical companies such as Harbin Pharmaceutical Group, Tongrentang, Yunnan Baiyao, and Hengrui Medicine—among them over 20 publicly listed enterprises. The company also partners with renowned food and beverage brands like Jiaduobao. Its equipment is widely used across traditional Chinese & Western medicine extraction, biologics, blood products, chemical processing, and food & beverage industries.

The upgraded GQ160 High-Speed Tubular Centrifuge features an expanded rotor capacity—increased from 11L to 16L—delivering approximately 45% higher throughput under the same operating conditions, significantly boosting productivity while reducing energy consumption per unit output.

Key Features:

High-Efficiency Separation: Stable performance for continuous solid-liquid or liquid-liquid clarification.

Compact & Integrated Design: Smaller footprint, easy installation, and space-saving layout.

Premium Materials: Critical components made from 316L stainless steel, ensuring durability and compatibility across diverse applications.

Intelligent Control: Equipped with a PLC system for real-time parameter visualization, user-friendly operation, and simplified maintenance.

Broad Applicability: Successfully deployed in pharmaceuticals, bio-fermentation, food processing, and nanomaterials—flexibly adapting to varied separation requirements.

Technical Specifications (Standard Model):

Model: GQ160G High-Speed Tubular Centrifuge

Type: Floor-standing, vertical configuration

Rotor Inner Diameter: 160 mm

Effective Rotor Length: 820 mm

Rotor Volume: 16 L

Max Speed: 14,000 rpm

Water Throughput: 3 m³/h

Motor Power: 3 kW

Weight: 1,000 kg

Dimensions (W×D×H): 910 × 620 × 1770 mm

Operation Mode: Continuous feed for solid-liquid or liquid-liquid clarification

Note: All specifications are for the standard configuration. Customization is available to meet specific client requirements.
