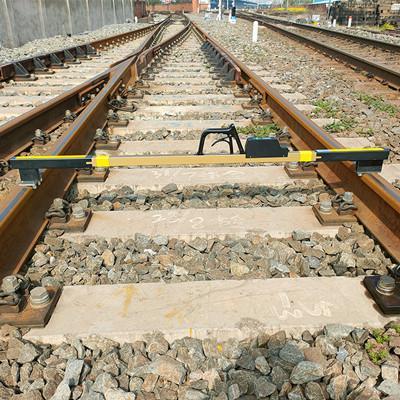

Digital Track Gauge
GET A FREE QUOTE NOW
Digital Track Gauge: Utilizes microelectronics, embedded, and sensor technologies to measure railway track gauge parameters accurately through an OLED display screen.
Digital Track Gauge can directly read the measurement values of railway track gauge, super elevation , check rail gauge, back to back distance and flangeway clearance through microelectronics, embedded and sensor technologies and OLED display screen.
FEATURE
1. Large LED backlit display: especially suitable for day outside and dark night 2. Quick calibration operation: simple measurement process 3. Large capacity battery:long standby time 4. Accurate measurement:keep long-term stability 5. Temperature compensation :working temperature is -30~+55℃ 6. Insulated design 7. Anti-electromagnetic interference 8. Waterproof:could use in rainy day 9. power saving function: no operation within 15 minutes, the system will automatically shut down. 10. Approval by CHINA ACADEMY OF RAILWAY SCIENCES
11.1000mm,1067mm,1435mm,1520mm,1600mm,1676mm track gauge is available.
SPECIFICATION
Model(1435mm) | GJC-TJG1 |
Track gauge(mm) | 1384-1470 |
Gauge rail check gauge(mm) | 1364-1450 |
Guard rail face gauge(mm) | 1344-1430 |
Superelevation measuring range(mm) | -200~+200 |
Flangeway Clearance(mm) | 20-107 |
Superelevation division value(mm) | 0.10 |
Track gauge division value(mm) | 0.1 |
Track gauge max indication error(mm) | ±0.25 |
Superelevation error(mm) | ±0.45 |
Application rail line | railway speed less than 250km/h |
