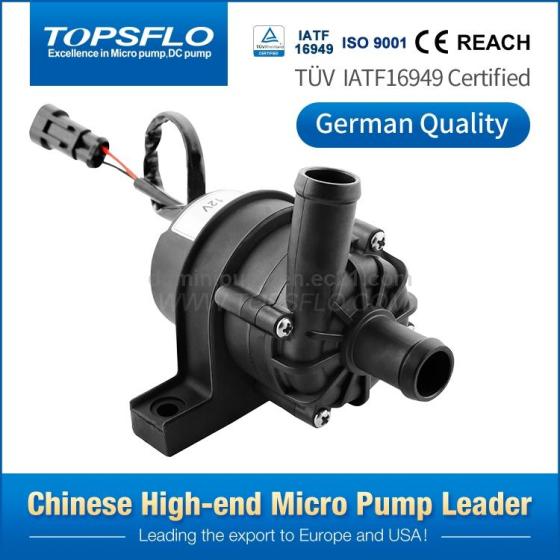

TOPSFLO TA50/TA60 -40~125 Clesius 12v DC brushless auto engine system pump
Specification | ||||||
| Model | Product Code | Max Flow Rate(L/M) | Rated Voltage (Vdc) | Current (A) | Max Water Head (M) | Power (W) |
| TA60 | TA60-R12-3409 | 34L | 12 | 4.5 | 8.5 | 54 |
| TA60-R24-3709 | 37L | 24 | 2.5 | 8.5 | 60 | |
Features:
·High efficiency ECM brushless DC motor with long lifetime.·Heavy duty work, can sustain 24 hours continuous running.·Durable permanent magnetic rotor & high density ceramic shaft.·Advanced magnetic driving technology, static-seal without leakage forever.·Replacing position sensor by micro processor position calculation, -40°C~125°C wide operating temperature is realized, suitable for extreme outdoor environment.·Optimized 3 phase motor high efficiency design, combined with low-resistance copper wire, achieving large flow and low temperature rise.·Anti-vibration pump rubber bracket designed for automotive vibration working condition.·Highly adaptable circuit designed specially for unstable automotive voltage and peak voltage.·Automotive water-proof connector.·Applied liquid: pure water, antifreeze solution.·Low or no maintenance.·Low power consumption
·IP68
Protection functions:·Automatic polarity protection ·over-voltage protection
·over-current protection ·constant power output ·dry-running protection
Application:
