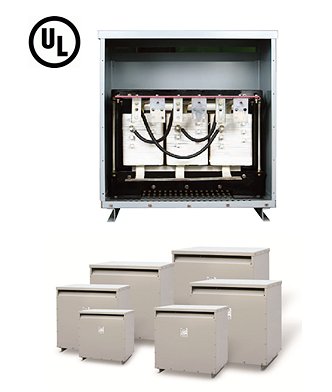

Dry-Type Transformer – Indoor Electrical Power Distribution – For Sale
DRY TYPE TRANSFORMERS
PHASE : THREE
FREQUENCY : 50 / 60 Hz
MAXIMUM RATED CAPACITY : 1,000KVA
MAXIMUM RATED VOLTAGE : 23KV
INSULATION SYSTEM : UL FILE E304840 CLASS 220℃
UL LISTED : UL FILE E306669, 480V-208Y/120V
STANDARD : IEC, IEEE, ANSI, NEMA, UL etc
DRY Type GeneralPurpose & Power Transformers are designed, manufactured and tested inaccordance with IEEE, ANSI, NEMA and UL standards.These are air-cooled dry type transformers with Class 220(R) insulationsystems.All insulating materials are exceed NEMA-ST20 standards and be rated for 220℃UL component recognize insulation system.
