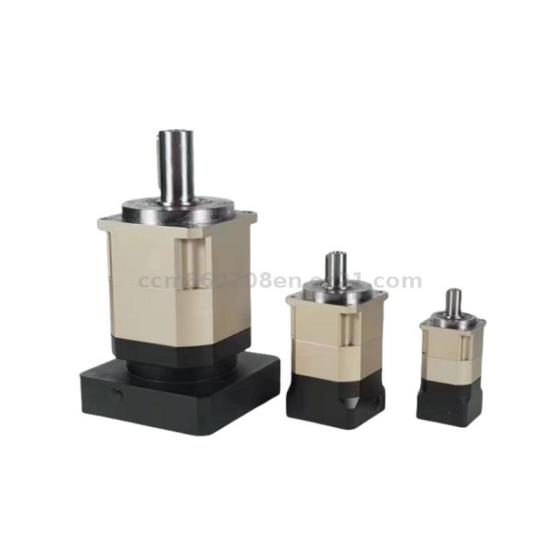

Chelsea Gear Planetary Reducer PGH60 L1 L2 Low Backlash 6 Arc Minute Output 37-55 N.M Ratio 3 To 100

Chelsea （HK）Industrial Technology Co.,Limited. which is a professional leading gearboxes manufacture and system solutions with 31 years history since 1993 covering total area of 8.5 Acres and the workshop buildings 322,800sq.ft in China .We have common models PGH060/090/115/142/180. Planetary gear reducer PHG060 technical parameters: 1.Model: PGH060 2. Speed ratio range: 3:1, 4:1, 5:1, 7:1 ,8:1 ,10:1 ,15:1 ,20:1, 25:1 ,30:1 ,40:1 ,50:1 , 60:1 , 70:1 ,100:1 3. Planetary type: Single stage L1 and Double stage L2 4. Single stage gear reducer input size:14mm/19mm 5. Double stage gear reducer input size:8mm/11mm 6. Output size: 16mm 7. Input speed: 5000rpm---10000rpm 8.Output torque: 37N.m---55N.m 9.Suitable for motor power: 0.1kW,0.2kW,0.4kW,0.75kW10.Planetary Accuracy: P0: L1 ≤2 Arc minute，L2≤4 Arc minute P1: L1 ≤4 Arc minute，L2≤6 Arc minute P2: L1 ≤6Arc minute，L2≤8 Arc minute 11. Default delivery accuracy: P2,if need more precision grade,please note the service. 12. Coaxial layout form 13.Housing material: 20 CrMnTi 14. Worm gear material : 20 CrMnTi 15. Connected flange : Aluminium
