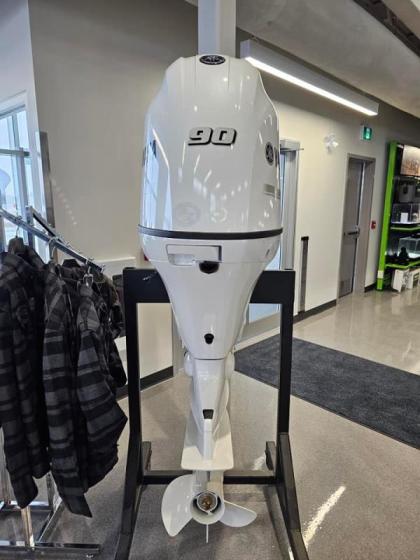

Yamaha Mid-Range Four-Stroke 90 HP Extra-Long Shaft EFI with Power-Assisted Tilt & Trim System – Marine Outboard Engine – For Sale
GET A FREE QUOTE NOW
Specifications: Engine Type: 4-stroke, 4-cylinder, 16-valve, SOHC. Displacement: 1832cc. Bore x Stroke: 81.0 x 88.9mm. Max RPM: 6100. Lubrication: Wet-sump. Fuel: EFI. Ignition: TCI Microcomputer. Starter: Electric. Alternator: 35A. Trim &
| Specifications | |
|---|---|
| Engine Type | 4-stroke, 4-cylinder, 16-valves, SOHC |
| Displacement | 1832cc |
| Bore x Stroke | 81.0 x 88.9mm |
| Recommended Max RPM | 6100RPM |
| Lubrication System | Wet-sump |
| Fuel Management | EFI |
| Ignition | TCI Microcomputer |
| Starter System | Electric |
| Alternator Output | 35 Amp |
| Trim & Tilt Method | Power trim & tilt |
| Digital Gauges | Standard |
| Digital Network Gauges with Fuel Management | Optional |
| Gear Ratio | 2.15 : 1 |
| Engine Oil Capacity | 3.2L / 3.0L with/without oil filter exchange |
| Fuel Type | Regular Unleaded |
| Scavenging | Single Over Head Camshaft |
| Previous model/code | New model! |
| Dimensions | |
|---|---|
| Transom Length |
|
| Weight |
|
CDI-E: CDI-Electronic Automatic
CDI-M: CDI-MicrocomputerTCI: Transistor Controlled Ignition
