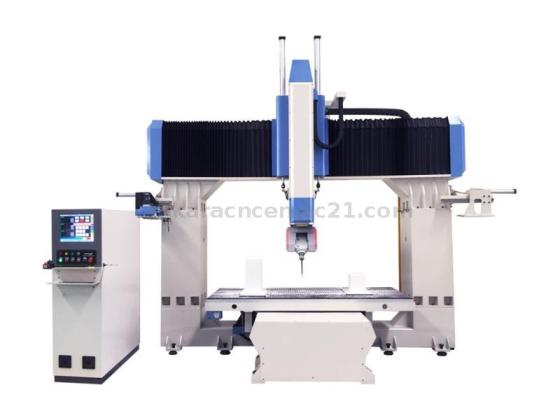

CNC 5-Axis Router – Model TK1325-5A – Woodworking/Mold Making – Manufacturer
We offer the industry’s most advanced and comprehensive selection of 5-axis machine configurations to give you the best cost of ownership as well as endless part-processing capabilities.with 5 axis cnc router you can process five sides of a part in a single setup. According to the products you are processing, you can choose one table or double tables.
| X,Y-Axis Travel | 1220*2440*950mm |
| Spindle Power | 10kw HSD spindle, 1000-24000rpm, liquid cool |
| C travelling | ±213° |
| A travelling | ±135° |
| Beam spacing(MM) | 4260 |
| Beam Height(MM) | 2150 |
| Tool magazine | Carrousel tool tool magazine (8positions) |
| Frame | Cast steel |
| Repeatability | +/- 0.05mm |
| Max. Rapid Travel Speed | 25m/min |
| Total Power | 24KW |
| Maximum lifting weights | 7.5T |
| Drive System X and Y axis | Rack and Pinion, rail linear bearing |
| Drive System Z axis | Lead Screw, rail linear bearing |
| Moving Type | Table moving |
| Motor | Yaskawa Servo motor and driver |
| Working Voltage | AC380V/50HZ, 3PH; 220V/60Hz,3PH; AC440V/50HZ, 3PH |
| Operating System | Osai / Siemens / Syntec |
| Command Language | G Code&M Code |
| Tool Holder | HSK63F |
| Collet | BT40 |
| Software (Optional) | MasterCAM, Powermill, AlphaCAM i.e. |
