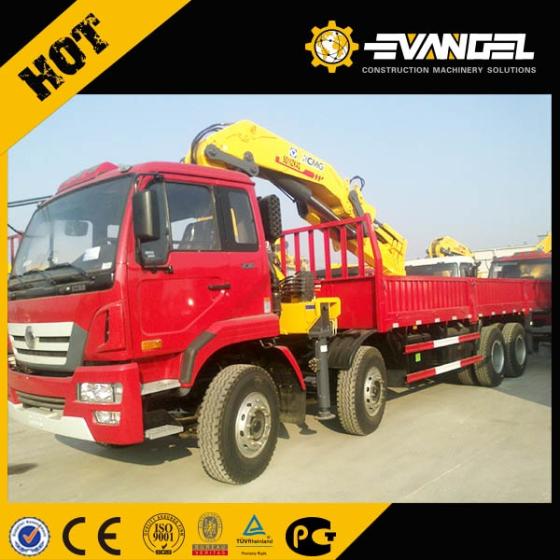

Truck Mounted Crane – Mobile Lifting Solution

Truck mounted crane is a kind of hydraulic lift and telescopic system to achieve the goods up and down, rotation, lifting equipment, usually assembled on the truck. Generally by the truck chassis, cargo compartment, take power, crane composition.

1, advanced R & D and analysis means to ensure design reliability.

2, four-link mechanism, lifting capacity stronger.

3, flange telescopic arm connection structure.

4, independent research and development of the rotating body, with a strong driving force, may meet more demand conditions.

5, hexagonal boom technology, good for neutral, cross-section bending ability.

6, the unique floating three-point bridge structure design, effectively reduce the vehicle running when the chassis beam bear the additional force.

XCMG 8Ton SQ8ZK3Q Truck-mounted crane Features

Model	SQ8ZK3Q	Unit
Max Lifting Moment	16	t.m
Max Lifting Capacity	8000	kg
Recommend Power Needed At Recommend Oil Flow	28	kw
Max Oil Flow of Hydraulic System	40	L/mi
Rated Pressure Of Hydraulic System	28	MPa
Oil Tank Capacity	160	L
Rotation Angle	(360°)All Rotation	.
Crane Weight	2970	kg
Installation Space	1150	mm
Choice of Chassis	CA1176PK2L9T3A95 ;CA1170PK2L7T3EA80; CA1240PK2L7T4EA81; HFC1202KR1K3;EQ5161GFJ7;BJ1317VNPJJ-S5; EQ5201GFJ6;CA1200PK2L7T3EA80; LZ1160LCMTDFL1250A9;BJ5317ZNPJJ-S;CA1253P7K2L11T1E ;EQ1252GFJ;ND1255B50J



SQ8ZK3Q Lifting capability diagram
Working radius (m)	2	4.175	5.995	7.785	9.755
Lifting capacity (kg)	8000	3700	2400	1700	1250

XCMG 14Ton SQ14SK4Q Truck-mounted crane Features

Max Lifting Moment: 35t.m
Max Lifting Capacity: 14000kg

Parameters

Model	SQ14SK4Q	Unit
Max Lifting Capacity	14000	kg
Max Lifting Moment	35	T.M
Recommend Power	32	kw
Max Oil Flow of Hydraulic System	63	L/min
Max Pressure of Hydraulic System	26	MPa
Oil Tank Capacity	160	L
Rotation Angle	All Rotation
Crane Weight	4800	kg
Installation Space	1300	mm
Choice of Chassis	BJ1317VNPJJ-S5; NXG1310D3ZEX

SQ14SK4Q Lifting capability diagram

Working radius(m)	2.5	5	8	11	13.2	15.8
Lifting capacity(kg)	14000	6000	3500	2300	1800	1200
