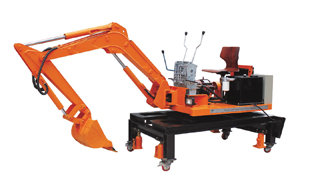

Excavator Hydraulic System Fault Diagnosis Training Simulator – Educational Equipment Supplier

Feature
■ An educational unit for understanding the components of the Excavator

 hydraulic system and training.

■ Is the best model to see operation state and location of components by

 making parts which aren't seen at an actual one open.

■ Effective to educate the troubleshooting and inspection theory/training.

Specification
■ Composition : Battery, operating lever, light system, horn, hydraulic lever,
                 instrument panel, starter motor, battery connector, relay,
                 digital meters, etc
■ Kubota U17 mini excavator hydraulics
■ Three-phase 380V 7.5 horsepower motor
■ Hydraulic tank 20 liters
■ 5” 4 wheels on the frame
■ Hydraulic cylinder mounted - Fix to the bottom by hydraulic cylinder
                                during operation
■ Size : approx. 2,700 X 1,300 X 2,000 mm
■ Weight : approx. 450 kg

Training Contents
■ Operating an excavator.
■ Hydraulic line inspection/check.
