Come Along Clamps – Manual Hoisting & Pulling Tool Supplier

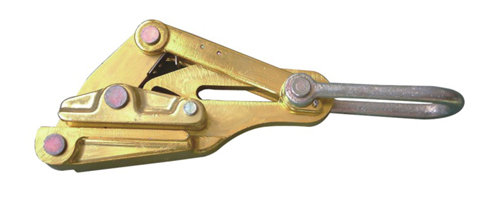

Come along clamps are used for line stringing operations, as tensioning tools for line tensioning and sag adjustment. It is specially designed and produced for ACSR conductor, insulated conductor, OPGW, and earth wire, anti twisting braided steel wire rope etc.
It is made of high quality steel or Aluminum Alloy.
Aluminum Alloy Conductor COME ALONG CLAMPS
| Item No. | Model | Rated Load (KN) | Conductor Diameter (mm) | Max. Opening (mm) | Weight (kg) |
| 13221 | SKL-7 | 7 | ACSR7-12 | 14 | 1.0 |
| 13222 | SKL-15 | 15 | ACSR13-16 | 18 | 1.4 |
| 13223 | SKL-25 | 25 | ACSR17-23 | 24 | 3.0 |
| 13224 | SKL-40 | 40 | ACSR23-29 | 32 | 4.4 |
| 13225 | SKL-50 | 50 | ACSR30-35 | 36 | 6.6 |
| 13227 | SKL-60 | 60 | ACSR36-38 | 40 | 9.2 |
| 13228 | SKL-70 | 70 | ACSR38-40 | 42 | 14 |
| 13229 | SKL-80 | 80 | ACSR40-42 | 45 | 18 |
| 13229A | SKL-90 | 90 | ACSR42-45 | 48 | 20 |
Application: Used to pull conductors in power and communication line construction field, and to maintain temporary tension until it can be permanently terminated.
Feature: The come along clamp are forged from high strength aluminum alloy, light weight and high strength. All the jaws of clamps are specially designed for ACSR conductors. Special size jaws can be ordered as per the customer’s requirement.
For more details please contact with us.
