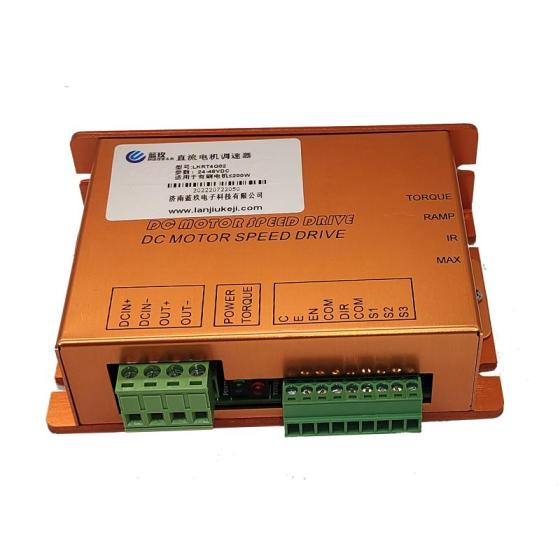

12 V / 24 V DC Motor Speed Controller – 30 A, Reversible – for Robotics & Automation – For Sale

I. Product characteristics:

This series of speed controller is a low voltage DC four-quadrant regeneration pulse width controller adopts special single-chip intelligent control system and has rapid response speed, steady operation, reliable work status and multiple protection functions.

◆ SMT technology, small size

◆ Pulse width modulation

Low noise during operation, high efficiency, and low maintenance cost which better enhance the service life of DC motor.

◆ Four-quadrant regenerative operating mode

◆ Regenerative braking function

It doesn’t need external reversing contactor and will not result in electric motor parts or other components overheating or burning down.

◆ Enable/ reversing terminal

To realize certain functions by using simple passive switching value or transistor collector open circuit.

◆Status indicator light

 Power supply indicator and over-current alarm indicator can provide the visible status of speed controller.

◆ Output current setting function (amplitude limiting)

◆ Torque compensate function

◆ Double closed-loop PI regulation(current, voltage)

◆ Standard analog quantity signal control

   Analog quantity: 0-6V 0-10V or controlled by potentiometer

◆ A broader scope of input voltage:20-55V

II. Performance indexes

1. PWM pulse width modulation

2. Speed ratio:                           1:100

3. Control potentiometer:                 (1K……50K )/2W

4. Input voltage:                        20-55V VDC

5. Output current:                       0-20A (amplitude limiting)

6. Input impedance:                      ≥50KΩ

7. Revolving speed (standard precision %):   1 %

8. Starting/braking time:                     1-20 S

9. Environment temperature:               -10℃~+50℃

10. Environment humidity:               ≤80RH(no moisture condensation)(relative humidity)

11. Insulation and voltage resistance:       1100V DC  1 minute

12. Insulation resistance:                  ＞ 20 MΩ

13. Leakage current:                       ≤ 0.9 mA

14. Weight                                        0.25Kg

    15. It is applicable for tombarthite, permanent magnet and separately excited motor

III. Boundary dimension: see figure below 112*76*33mm
